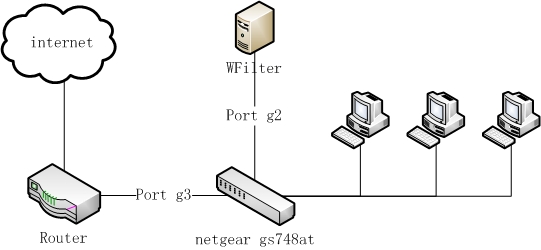

<ul id="e64qu"></ul> An office network is connected by a netgear gs748at switch, the network topology diagram:

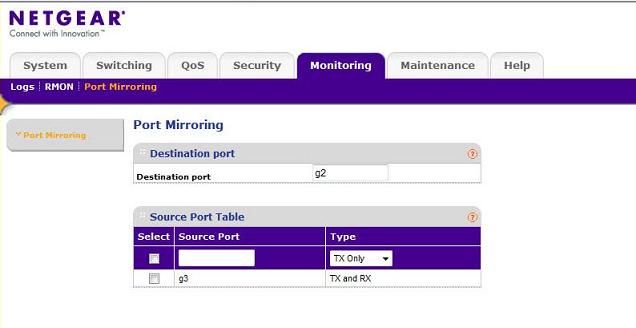

In this network, we only need to do port mirroring in the netgear gs748at switch to do monitoring and filtering. The below diagram shows the mirroring settings of the netgear switch:
As in the diagram above, port "g3" is connected to the internet router and port "g2" is connected to the WFilter computer.
To check whether port mirroring is properly configured, please check: How to check whether port mirroring is properly configured?
For more WFilter deployment examples, please check: WFilter Deployment Examples.
